Ada (AdaCore)

Ada (AdaCore)#

The Lattix Ada module that uses AdaCore’s libadalang python module. The Module consists of a python program that can be run standalone or as a module of Lattix. See below for instructions on how to use Ada module directly from Lattix Architect.

Running ltxada command standalone#

The python program “ltxada” is installed in the “ada” directory in the Lattix installation.

There are three subdirectories:

  • bin

  • lib

  • python

The “bin” directory contains the “ltxada” program which can be used to process the Ada source files and create a Lattix LDI file that represents the dependencies.

The usage is as follows:

usage: ltxada [-h] [--version] [--directory-recursive DIRECTORY_RECURSIVE] [--directory DIRECTORY] [--ada-file-extensions ADA_FILE_EXTENSIONS]
           [--file FILE] [--output OUTPUT] [--verbose]

Lattix Ada Analyser

options:
  -h, --help            show this help message and exit
  --version, -v         Display version information
  --directory-recursive DIRECTORY_RECURSIVE, -D DIRECTORY_RECURSIVE
                     Recursively search for Ada files in the specified directory
  --directory DIRECTORY, -d DIRECTORY
                     Search for Ada files in the specified directory (non-recursively)
  --ada-file-extensions ADA_FILE_EXTENSIONS, -e ADA_FILE_EXTENSIONS
                     Specify file extensions to analyse as Ada files. (defaults to "adb" and "ads")
  --file FILE, -f FILE  Analyse the specified Ada file
  --output OUTPUT, -o OUTPUT
                     Output LDI file (defaults to ltxada.ldi.xml)
  --verbose             Enable verbose output

Example:

ltxada --directory-recursive path/to/my/ada/files --output outputfile.ldi.xml

The resulting outputfile.ldi.xml can be loaded into Lattix via the “Ada” Module, or via the LDI Module.

Create ADA Project in Lattix Architect#

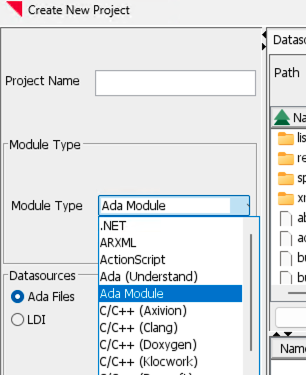

You can load the LDI file created above by selecting the “Ada Module”

select_ada

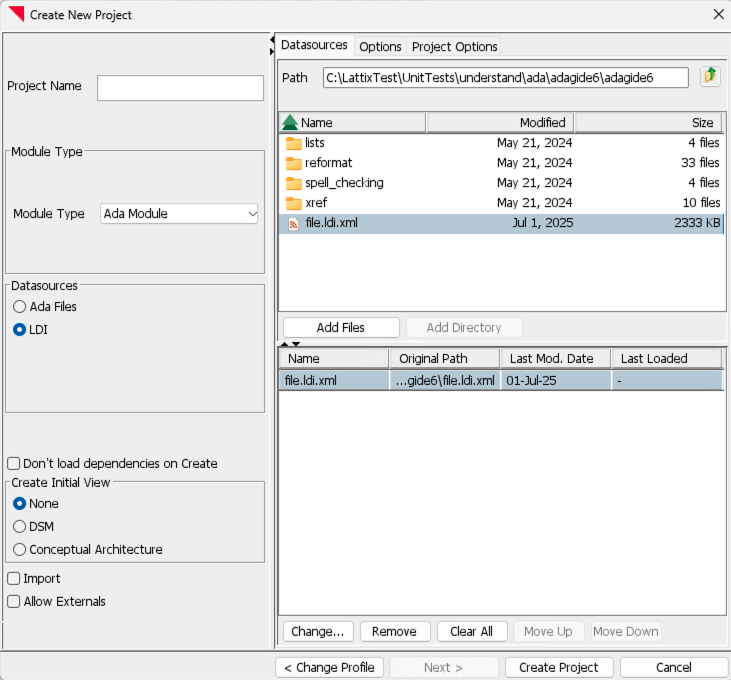

Then select the “LDI” Datasource input. Select the LDI file that was created in the above step and click “Add Files”.

ada_new_project_ldi

It is also possible to load the ADA data directly from Lattix Architect, skipping the above step running ltxada. Select the “Ada Module”.

select_ada

Select the “Ada Files” radio button in “Datasources”. Then navigate to the directory that contains the Ada project and click “Add Directory”

ada_new_project

Click the “Create Project” button
